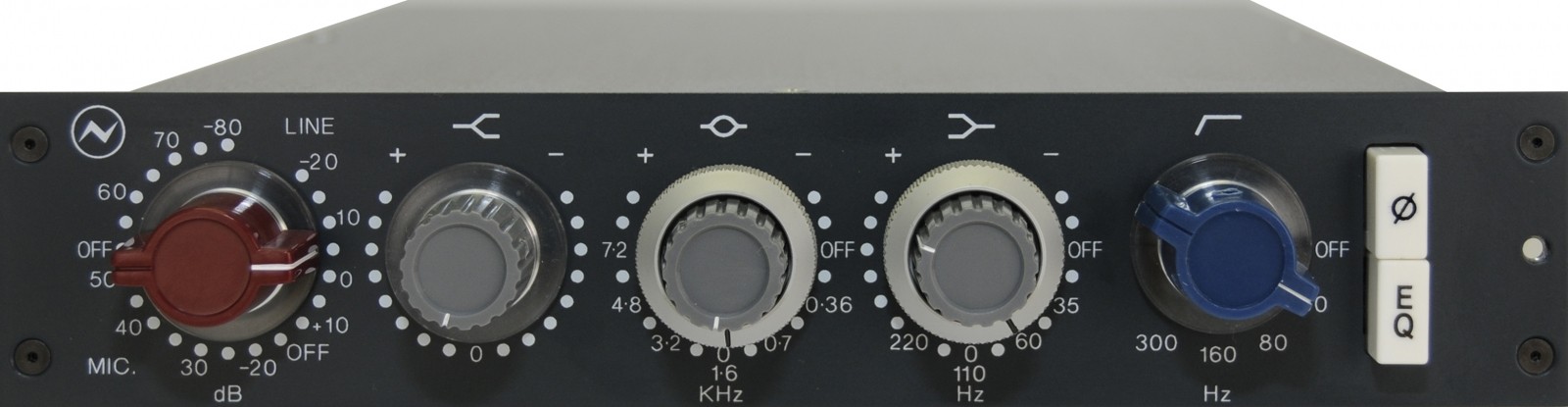

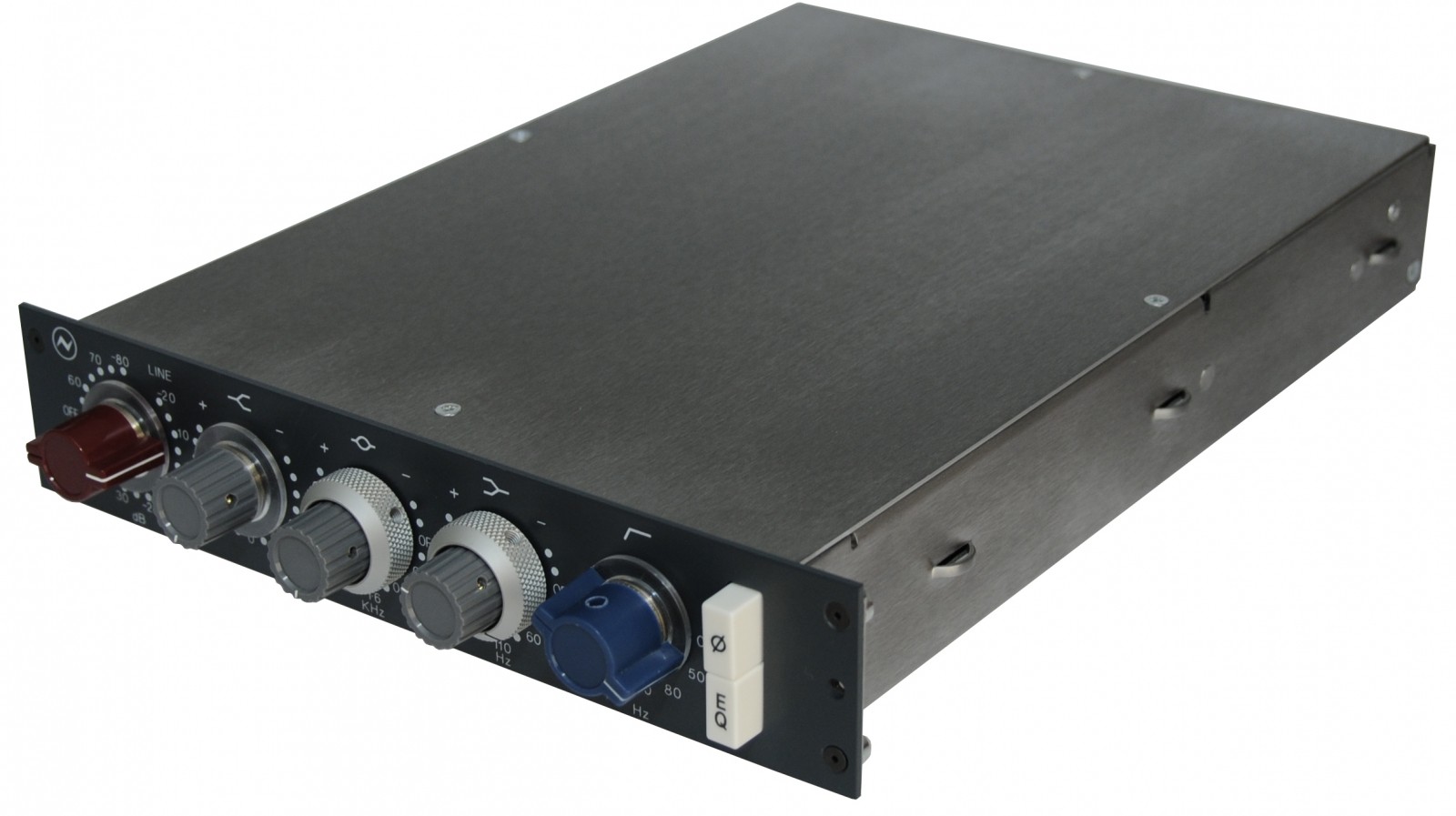

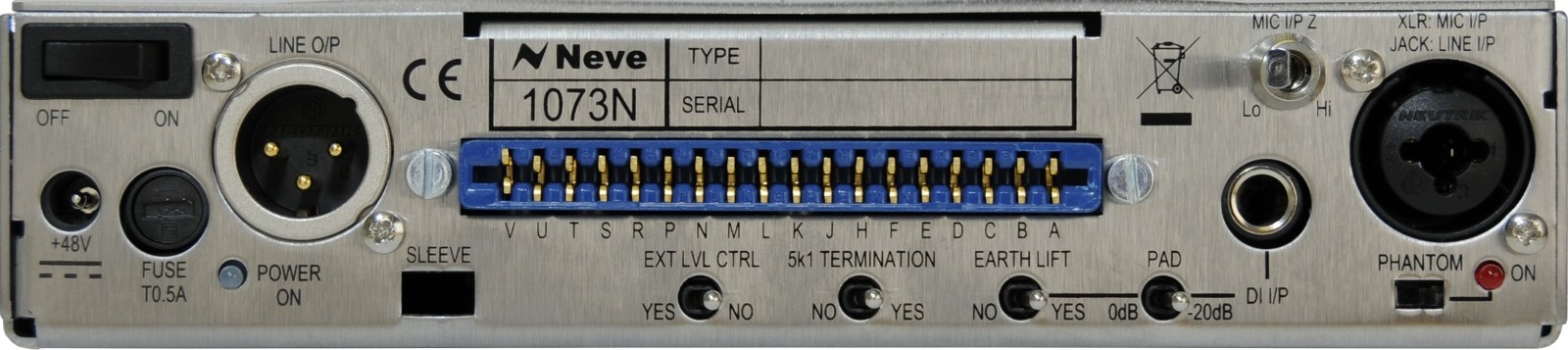

AMS Neve 1073N

Produktinformationen "AMS Neve 1073N"

  • Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power
  • 3 EQ bands  & HP filter
  • Designed and built in England
  • Neve designed hand-wound transformers
  • Can be used as a standalone module or inserted into a compatible rack or console
  • Mic & Line inputs are transformer balanced and earth free
  • Microphone Input: Gain +80db to +20dB in 5dB steps.
  • Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.
  • DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
  • Output: Maximum output is >+26dBu into 600Ω.
  • Output is transformer balanced and earth free
  • Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output
  • (80kHz bandwidth) into 600Ω.
  • Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
